Visual Inspection of HTML elements in Katalon Studio

In Verify image and take screen shot keyword doesn't work? - #4 by ashraf.madina, @ashraf.madina wrote:

On your apple logo page, can you do a transform: rotateY(180deg); and see if your test passes or fails - i’m thinking it will pass cuz it might only be verifying the resolution/size of the img, not the actual img.

Here I will demonstrate my solution to this type of requirement. I created a demo project on GitHub:

I will quote a section from its doc


Comparing HTML elements between the production and the development environment

Selenium WebDriver provides a basic support of capturing screenshot of web pages. See Guru99 article for how to. The AShot library extends it to take screenshots of arbitrary HTML elements (such as <div>, <table>,<img>, <svg>). But taking screenshot is just the start of fatigues. I want to take 2 screenshots and compare them to find the difference. I want to compile a report of the source images and the diff image for a lot of targets. I want my test to fail if the image difference exceeds the degree I set. For example, if the image difference is greater than 5%, the test should fail.

My Inspectus library provides the framework to enable such visual inspection of HTML elements. Let me show you an example.

I would use the following 2 URLs as testbed:

Please visit these 2 sites and have a look. You would find them quite similar. The pages show a variations of an apple image, like this:

Apple I bit

There are small differences in the pages — the apple is transformed: resized, rotated. I want to compare these slightly different apple images in this pair of web sites programatically.

The following is the procedure:

  1. You need Java, Katalon Studio, Gradle installed. Please follow the instruction.

  2. Download the zip of the sample project from the Release page.

  3. In the commandline, run

$ cd <sample project dir>
$ gradle drivers
  1. start Katalon Studio, open the project

  2. open the “Test Cases/AppleTwinsDiff”, and run it

  3. In the <projectDir>/store directory, the test case will create an HTML named AppleTwinsDiff-yyyyMMdd_hhmmss.html. The HTML will look, for example, like this:


Let me add some descriptions:

AppleTwinsDiff top

Please click the button labelled Show Diff in Modal. Then you will see the following Diff page:

AppleTwinsDiff diff

This page shows a “carousel”. By clicking the left side or the right side of the page you can slide the page into the Left and the Right:

AppleTwinsDiff left

AppleTwinsDiff right

The left apple and the right apple look similar but different. Can you see how? Yes, it’s rotated. The diff image shows the different pixels painted in red.


@ashraf.madina also asked me:

On your apple logo page, can you do a transform: rotateY(180deg); and see if your test passes or fails - i’m thinking it will pass cuz it might only be verifying the resolution/size of the img, not the actual img.

I would reply to this question.

My test detected the 45.73% pixel-wise difference between the original apple image and the rotated one. Based on the degree of diffence detected, my test possibly will FAIL.Or I can let it WARN or PASS if i want to.

<< I am not going to explain my “Visual Inspection” framework. It requires seasoned programming skill in Java. It’s too difficult to explain to non-programmers. >>

3 Likes

By the way, I have made another GitHub project

This project does just the same as the inspectus4katalon-sample-project

This project is not a Katalon Studio project.

This project works on Gradle + JUnit5 + Selenium4 empowered by the kazurayam’s “Visual Inspection” framework which depends on a lot of open-source projects.

Kazurayam’s “Visual Inspection” framework is completely independent of Katalon Studio.

3 Likes

Sample output

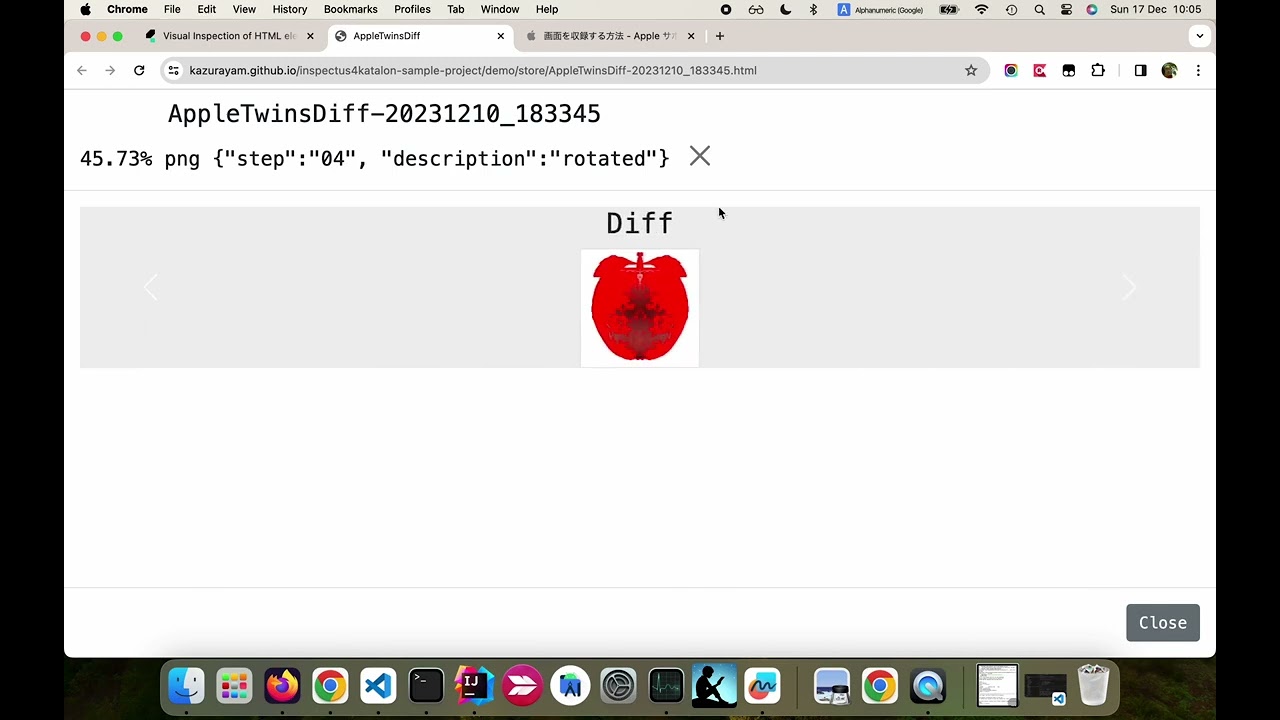

Here is a YouTube movie where I operated this page to have a look at its contents. Please click the thumbnail to open the movie.
