Unable to start application on this device: an unknown server-side (Windows)

Hi @Sheri_Ochoa1,

There is an option for reinstalling the app each time you start the application that you can change to false.

If you look at your test, you should see a function for startApplication('APPLICATION_FILE', true), the second parameter is what tells the app to reinstall. If you set that parameter to false, it will keep the app installed between tests.

Hope this helps,

Chris

Thank you! Any idea why the app won’t start on the login page?

Hi @Sheri_Ochoa1,

I think the problem you’re seeing is because the login form and the main app have 2 different package names - likely, the login form is from a third party. When the test starts, Katalon/Appium are expecting a certain package and activity, and if it doesn’t find it, you get an error like you’re seeing.

I thought the settings I recommended for appWaitPackage would have allowed for both packages, but that doesn’t look like it’s working. I think you could try a couple of alternatives:

  1. Set appWaitPackage to * - a wildcard might allow Appium to run with any package
  2. Set appWaitPackage just to com.smartmobile.pawtree
  3. Set appWaitPackage just to com.tradeweb.mainSDK

You can also try setting appWaitActivity just to MainActivity (without the *.)

Hopefully one of these options will get it to work for you with the login screen.

– Chris

Hi
I’ve just run into this ‘unable to start app’ error.
I’ve installed all components, although Appium was too much hassle to install via NPM (certain components kept failing) so I installed Appium Desktop - this is 1.10.0.
After reading previous notes above, I also changed Project -> Settings -> Desired Capabilities:
Name = appWaitActivity
Type = String
Value = *

My details and log follow - help would be appreciated:

**OS **(Windows 10)
Katalon Studio Version (5.10.1)

Environment (for Mobile testing)

  • Appium version ( Desktop 1.10.0):
  • Mobile platform/version under test( Android 7):
  • Real device or emulator/simulator ( Real Motorola G4):

Expected Behavior -

TC01 Verify Correct Alarm Message will complete

Actual Behavior -

Test Cases/TC01_Verify Correct Alarm Message FAILED.
Reason:
com.kms.katalon.core.exception.StepFailedException: Unable to start app at: ‘C:\Users\dbown\Katalon Studio\Dan Test\androidapp\APIDemos.apk’ (Root cause: org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: Could not proxy command to remote server. Original error: Error: read ECONNRESET
Build info: version: ‘3.7.1’, revision: ‘8a0099a’, time: ‘2017-11-06T21:07:36.161Z’
System info: host: ‘CS738579’, ip: ‘172.24.120.33’, os.name: ‘Windows 10’, os.arch: ‘amd64’, os.version: ‘10.0’, java.version: ‘1.8.0_181’
Driver info: driver.version: SwipeableAndroidDriver
remote stacktrace: UnknownError: An unknown server-side error occurred while processing the command. Original error: Could not proxy command to remote server. Original error: Error: read ECONNRESET
at JWProxy.command (C:\Program Files (x86)\Appium\resources\app\node_modules\appium-base-driver\lib\jsonwp-proxy\proxy.js:236:13))
at com.kms.katalon.core.keyword.internal.KeywordMain.stepFailed(KeywordMain.groovy:36)
at com.kms.katalon.core.mobile.keyword.internal.MobileKeywordMain.stepFailed(MobileKeywordMain.groovy:40)
at com.kms.katalon.core.mobile.keyword.internal.MobileKeywordMain.runKeyword(MobileKeywordMain.groovy:23)
at com.kms.katalon.core.mobile.keyword.builtin.StartApplicationKeyword.startApplication(StartApplicationKeyword.groovy:51)
at com.kms.katalon.core.mobile.keyword.builtin.StartApplicationKeyword.execute(StartApplicationKeyword.groovy:40)
at com.kms.katalon.core.keyword.internal.KeywordExecutor.executeKeywordForPlatform(KeywordExecutor.groovy:53)
at com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords.startApplication(MobileBuiltInKeywords.groovy:74)
at com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords$startApplication.call(Unknown Source)
at TC01_Verify Correct Alarm Message.run(TC01_Verify Correct Alarm Message:25)
at com.kms.katalon.core.main.ScriptEngine.run(ScriptEngine.java:194)
at com.kms.katalon.core.main.ScriptEngine.runScriptAsRawText(ScriptEngine.java:119)
at com.kms.katalon.core.main.TestCaseExecutor.runScript(TestCaseExecutor.java:328)
at com.kms.katalon.core.main.TestCaseExecutor.doExecute(TestCaseExecutor.java:319)
at com.kms.katalon.core.main.TestCaseExecutor.processExecutionPhase(TestCaseExecutor.java:298)
at com.kms.katalon.core.main.TestCaseExecutor.accessMainPhase(TestCaseExecutor.java:290)
at com.kms.katalon.core.main.TestCaseExecutor.execute(TestCaseExecutor.java:224)
at com.kms.katalon.core.main.TestCaseMain.runTestCase(TestCaseMain.java:106)
at com.kms.katalon.core.main.TestCaseMain.runTestCase(TestCaseMain.java:97)
at com.kms.katalon.core.main.TestCaseMain$runTestCase$0.call(Unknown Source)
at TempTestCase1550183420536.run(TempTestCase1550183420536.groovy:22)

Hi @Dan_Bown,

Katalon Studio 5.10.x only supports Appium 1.8.1 (or 1.8.2-beta if you’re adventurous). Can you try downgrading to that version to see if you have better luck?

– Chris

Hi @Chris_Trevarthen
have now downgraded to Appium 1.8.1 but get an error that suggests I still have an Appium problem.
(it’r error referenced here by someone else: java.lang.ClassCastException: java.util.HashMap cannot be cast to org.openqa.selenium.WebElement ie error includes “java.lang.ClassCastException: java.util.HashMap cannot be cast to org.openqa.selenium.WebElement)”) .

I downloaded Appium Desktop 1.8.1 - this is what it says in Control panel and ‘About Appium’.
If I actually click ‘Appium’ to start that application though, I see a screen offering option ‘Start Server 1.9.1’.
Can anyone tell me whether Server is supposed to have a different version number or is this an Appium version control mistake?
Regards
Dan

Hi @Dan_Bown,

I was getting that same error as well on a Mac when installing different versions of Appium. It’s due to an incompatible version of one of the underlying Appium libraries, probably java-client.

I ended up uninstalling all the previous versions I could find on my machine as well as Katalon Studio and any versions of NodeJS. I then reinstalled NodeJS 9.2.0 (you might still be able to run a newer version than this), Katalon Studio 5.10.1, and Appium 1.8.1 (I’m using npm, not the Appium Desktop version).

It seems like scorching the earth, but I needed to be sure I got rid of any of the old references to the incompatible library versions.

Hope this helps,

Chris

Hi @Chris_Trevarthen
I uninstalled absolutely everything (referencing https://stackoverflow.com/questions/20711240/how-to-completely-remove-node-js-from-windows).
Do I actually need Node.js by the way? I’m not using NPM itself, since the install route for npm install -g appium@1.8.1 doesn’t work on that or any other version of Appium.
I do have Node.js (Node = v10.15.1) anyway, but just wonder (I haven’t tried without Node).
I have tried versions of Appium-Desktop (https://github.com/appium/appium-desktop/releases). Is Desktop version appropriate? Tried v1.82, v1.81 and v1.71. Even tried an old installer I had saved, from 2015.
If I look at ‘Appium’ on GitHub rather than ‘Appium-Desktop’ I only get option of source code rather than executable.
I hope I won’t have to start reinstalling JRE as well!

Thanks for assistance
Dan

Hi @Dan_Bown,

Appium (at least the one that I have installed through npm) is a node module, so I don’t think it would run without NodeJS (although the Appium Desktop version may install NodeJS for you, I’m not as familiar with the desktop version).

I don’t think you’ll have to install a different JRE (I’m using 1.8.0_45).

My worry about the Appium Desktop version is whether the underlying Appium node package matches the version of the Desktop app; you might be installing Desktop version 1.8.1 but it might not include version 1.8.1 of the node package if they’re not keeping them in sync.

I know you mentioned previously that you couldn’t install Appium via the npm command. Would you be able to share the error/problems you’re seeing?

– Chris

Hi @Chris_Trevarthen

I’m unsure how to install ‘Appium’ from source code, since that seems the only option in Git repository, whereas the Desktop version includes an exe download (excluding NPM).

I’m unable to use NPM to download Appium (npm install -g appium@1.8.1) due to ChromeDriver failure:
_info Chromedriver Install Downloading https://chromedriver.storage.googleapis.com/2.38/chromedriver_win32.zip
RequestError: Error: connect ECONNREFUSED 172.217.23.16:443).

I edited NPM config to include proxy settings, both http and https.
I also at one time used an alternative chromedriver url (npm config set chromedriver_cdnurl=http://npm.taobao.org/mirrors/chromedriver).

I also tried downloading chromedriver from the web and then pointing npm config at it (npm install chromedriver --chromedriver_filepath=C:\Users\dbown\AppData\Roaming\Chromedriver/chromedriver_win32.zip
npm config set chromedriver_filepath=C:\Users\dbown\AppData\Roaming\Chromedriver/chromedriver_win32.zip

The error I get (full details) from npm install -g appium@1.8.1 is:
info Chromedriver Install Installing Chromedriver version ‘2.38’ for platform ‘win’ and architecture ‘32’
info Chromedriver Install Opening temp file to write chromedriver_win32 to…
info Chromedriver Install Downloading https://chromedriver.storage.googleapis.com/2.38/chromedriver_win32.zip
RequestError: Error: connect ECONNREFUSED 172.217.23.16:443
at new RequestError (C:\Users\dbown\AppData\Roaming\npm\node_modules\appium\node_modules\request-promise-core\lib\errors.js:14:15)
at Request.plumbing.callback (C:\Users\dbown\AppData\Roaming\npm\node_modules\appium\node_modules\request-promise-core\lib\plumbing.js:87:29)
at Request.RP$callback [as _callback] (C:\Users\dbown\AppData\Roaming\npm\node_modules\appium\node_modules\request-promise-core\lib\plumbing.js:46:31)
at self.callback (C:\Users\dbown\AppData\Roaming\npm\node_modules\appium\node_modules\request\request.js:185:22)
at Request.emit (events.js:189:13)
at Request.onRequestError (C:\Users\dbown\AppData\Roaming\npm\node_modules\appium\node_modules\request\request.js:877:8)
at ClientRequest.emit (events.js:189:13)
at TLSSocket.socketErrorListener (_http_client.js:392:9)
at TLSSocket.emit (events.js:189:13)
at emitErrorNT (internal/streams/destroy.js:82:8)
at emitErrorAndCloseNT (internal/streams/destroy.js:50:3)
at process._tickCallback (internal/process/next_tick.js:63:19)
npm WARN optional SKIPPING OPTIONAL DEPENDENCY: fsevents@1.2.7 (node_modules\appium\node_modules\fsevents):
npm WARN notsup SKIPPING OPTIONAL DEPENDENCY: Unsupported platform for fsevents@1.2.7: wanted {“os”:“darwin”,“arch”:“any”} (current: {“os”:“win32”,“arch”:“x64”})

npm ERR! code ELIFECYCLE
npm ERR! errno 1
npm ERR! appium-chromedriver@4.0.0 install: node install-npm.js
npm ERR! Exit status 1
npm ERR!
npm ERR! Failed at the appium-chromedriver@4.0.0 install script.
npm ERR! This is probably not a problem with npm. There is likely additional logging output above.

Any further pointers gratefully received - I am a bit stuck!

Hi @Dan_Bown,

One quick thing that you could try before giving up on the npm route (I know you definitely tried a lot of things!) is to disable strict SSL checking for npm:

npm config set strict-ssl false

I’ll look at some other things, but I thought this might be a quick thing to try.

– Chris

Hi @Dan_Bown,

I was looking at the Appium Desktop versions and it looks like the versions of he Desktop app are not in sync with the underlying server. So if you want to use Appium server 1.8.1 (which is what Katalon Studio 5.10.1 requires) you’ll need to actually install Appium Desktop 1.6.3. You can find the download here:

Hope this helps,

Chris

2 Likes

Hi @Chris_Trevarthen

wow!!! Thank you so much for your continued support, I now have Katalon working - scripts running and recording. V 1.6.3 is the relevant version of Desktop. The filepath for Appium in my case is ‘C:\Program Files (x86)\Appium\resources\app\node_modules\appium’.

Thank you again,
Dan

1 Like

That’s great news! Glad you got it working.

– Chris

Hi I am getting this error while start recording in Ubuntu


Please resolve it fast.

Hi Akhil,

Please check is there any security flag is enabled in the app if so ask dev to disable it to identify by Katalon

install Appium 1.8.1 which is more compatible version for Katalon and then try to record it.

Thanks @Chris_Trevarthen

I had the same problem @Dan_Bown faced.

Now resolved it. By removing all the desired capabilities added before.

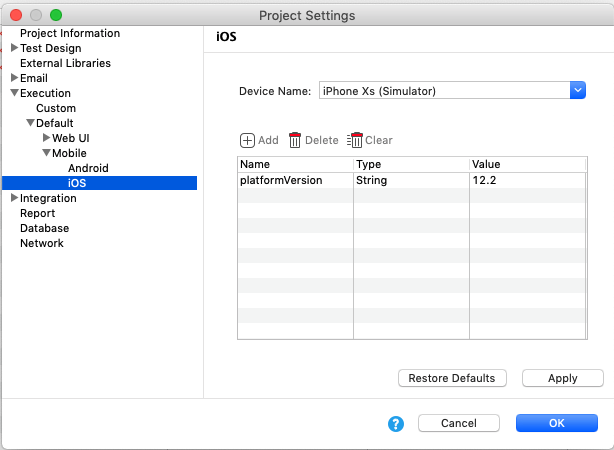

I have faced the same issue when running Katalon iOS automation in a macOS and solved it by adding platform version of the iOS simulator on the Project Settings.
21

Hey there! I got same prolblem with the same error window. Can anyone help me, please? My job depence on it, its too important to me!
Environment^ Windows-64, katalon is latest version, appium 1.8.1, node and npm latest. I tried to install 1.6.3, its not works for me.
There is my logs:

Wed Jun 12 11:13:36 ALMT 2019
java.net.ConnectException: Connection timed out: connect
at java.net.DualStackPlainSocketImpl.connect0(Native Method)
at java.net.DualStackPlainSocketImpl.socketConnect(DualStackPlainSocketImpl.java:79)
at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
at java.net.PlainSocketImpl.connect(PlainSocketImpl.java:172)
at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
at java.net.Socket.connect(Socket.java:589)
at sun.security.ssl.SSLSocketImpl.connect(SSLSocketImpl.java:673)
at sun.security.ssl.BaseSSLSocketImpl.connect(BaseSSLSocketImpl.java:173)
at sun.net.NetworkClient.doConnect(NetworkClient.java:180)
at sun.net.www.http.HttpClient.openServer(HttpClient.java:463)
at sun.net.www.http.HttpClient.openServer(HttpClient.java:558)
at sun.net.www.protocol.https.HttpsClient.(HttpsClient.java:264)
at sun.net.www.protocol.https.HttpsClient.New(HttpsClient.java:367)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.getNewHttpClient(AbstractDelegateHttpsURLConnection.java:191)
at sun.net.www.protocol.http.HttpURLConnection.plainConnect0(HttpURLConnection.java:1199)
at sun.net.www.protocol.http.HttpURLConnection.plainConnect(HttpURLConnection.java:1050)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(AbstractDelegateHttpsURLConnection.java:177)
at sun.net.www.protocol.http.HttpURLConnection.getOutputStream0(HttpURLConnection.java:1334)
at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(HttpURLConnection.java:1309)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getOutputStream(HttpsURLConnectionImpl.java:259)
at com.kms.katalon.application.utils.ServerAPICommunicationUtil.sendAndReceiveData(ServerAPICommunicationUtil.java:231)
at com.kms.katalon.application.utils.ServerAPICommunicationUtil.invoke(ServerAPICommunicationUtil.java:123)
at com.kms.katalon.application.utils.ServerAPICommunicationUtil.post(ServerAPICommunicationUtil.java:52)
at com.kms.katalon.tracking.service.TrackingApiService.post(TrackingApiService.java:24)
at com.kms.katalon.tracking.service.TrackingService.sendEventPayload(TrackingService.java:38)
at com.kms.katalon.tracking.service.TrackingService.lambda$0(TrackingService.java:24)
at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
at java.util.concurrent.FutureTask.run(FutureTask.java:266)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)

Hi Guys,

Anyone got the solution for this?

Thank you
